Cardan Cam.3-ejes Q-3D Motor Nova,Scout X4 Phantom,QRx350
2021-09-07
Categorias:
Modelo: Quanum - HPK9198000389-0
Cardan De Camara De 3-ejes Quanum Q-3d Motor Brushless Apto Para Nova,scout X4 Phantom,qrx350 Etc
 |
 |
 |
 |
 |
 |
..||..

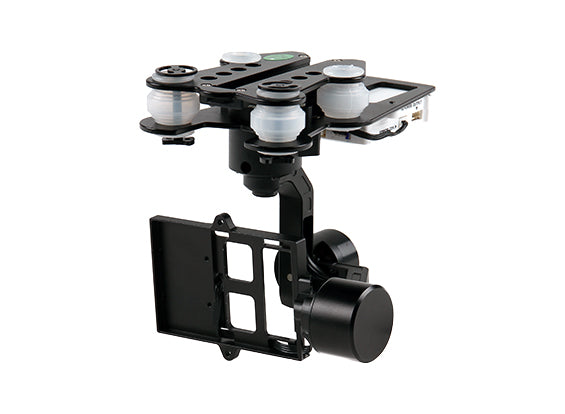

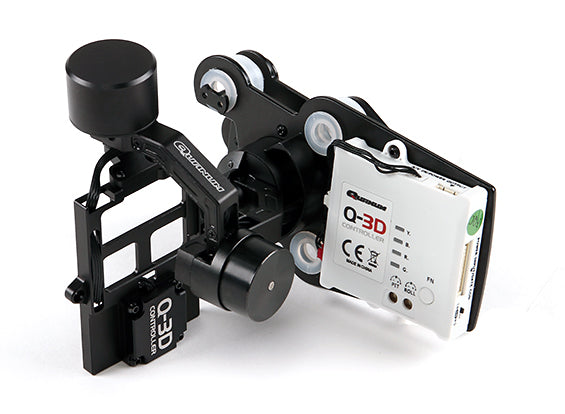

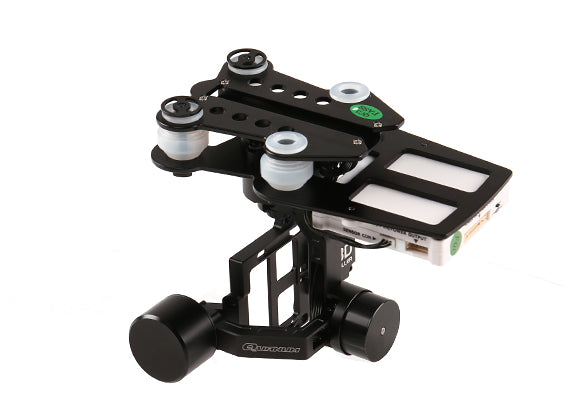

The all new Quanum Q-3D is a high performance, 3-Axis brushless camera gimbal that is designed for use with the GoPro Hero 3 and Quanum FPV+ cameras on 350~500 size multi-rotor models (such as the Quanum Nova, Scout X400, TALI H500, QR X350 PRO and DJI Phantom).
When it comes to a great aerial video platform, a few things are key; design, size, weight and performance. The Q-3D is a design that has been optimized from the start for proper integration, saving on size and weight and the pre-tuned controller performs just as you would expect from Quanum.
The Q-3D is one of the smallest and lightest 3-axis brushless gimbals on the market. At just 110mm tall, it can clear most multi-rotor landing skids and only weighs 185g, perfect for 350~500 sized multi-rotors. Both pitch and roll can be adjusted on the fly from an R/C channel and has a huge operating voltage range of up to 28 volts.
The Q-3D is pre-tuned from the factory, requiring no setup, simply bolt on to the bottom of the Quanum Nova, Scout X4, QR X350 PRO or DJI Phantom, install your GoPro Hero 3/Quanum FPV+ camera and you're ready to shoot professional stabilized aerial video!
Features:
• Lightweight yet duable aluminum construction
• Compact size
• Adaptable to most 350~500 size multi-rotor models (direct fit for Nova, Scout X4, TALI H500, QR X350 PRO and DJI Phantom)
• Pitch and roll control inputs
• Support for the GoPro Hero 3 video aux output
• Huge input voltage support (7.4~28V)
• Power supply voltage reverse connection protection and voltage compensation
• Motor drive side short circuit protection
• Initial pitch angle
• Sensitivity parameters adjustment
Specs:
Operating voltage: DC 7.4V~28V (recommended 12V, 3S Li-Po battery)
Operating current: 500mA~600mA (depends on the voltage supplied and motor power)
Operating temperature: -15°C~65°C
Sensor: 3-axis MEMS gyro and 3-axis MEMS accelerometer
Control accuracy: 0.02°
Angle control range: -135°~90°(tilt); -45°~45°(roll)
Applicable camera: iLook / iLook+ / GoPro series / Tunigy ActionCam
Weight: 188g (without camera)
Dimension: 114.3x97.5x106.6mm
Box dimension: 150x127x98mm
