Diatone Tyrant 180 FPV,Quadcoptero Carreras-verde ARF
2021-09-09
Categorias:
Modelo: Diatone - HPK366000166-0

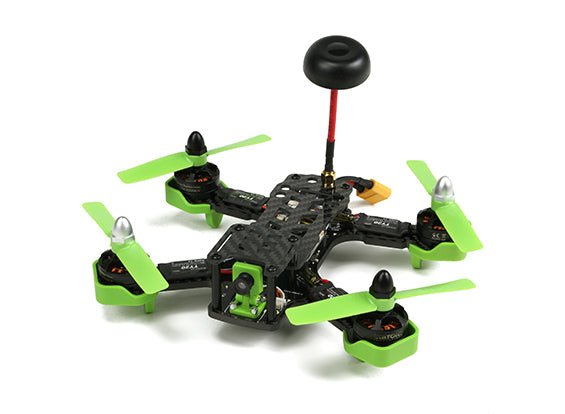

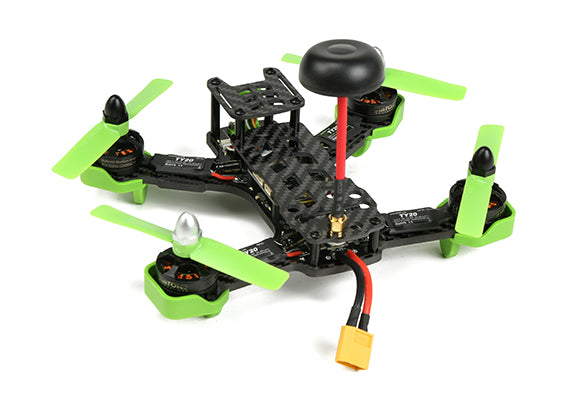

Diatone Tyrant 180 Fpv,quadcoptero De Carreras-verde Arf
 |
 |
 |
 |
 |
 |
..||..
Want to rule the quad racing world? Then let Diatone Innovations help you get there with the Tyrant! A new approach to racing quadcopter design that delivers superb performance across three racing classes.
Available in 150, 180 and 215 wheelbase the Tyrant design features high battery placement for more dynamic flight characteristics and all are manufactured from super strong carbon fiber composite material featuring a 4mm thick, one-piece main frame that is almost indestructible. All have an integrated PDB that is embedded in its super tough frame, reducing overall weight, improving robustness and making maintenance much easier.

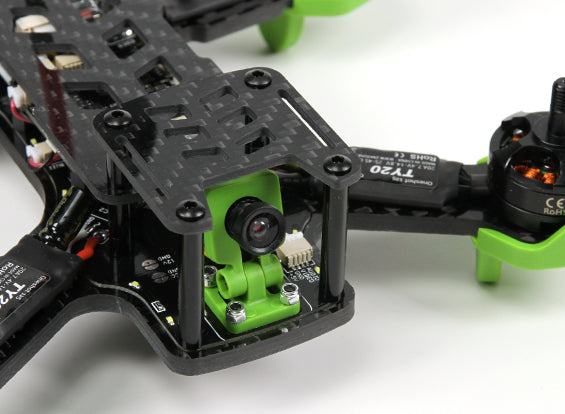

Each comes with a fully adjustable camera mount to adjust to your style of flight and the advanced race ready 40 channel video transmitter has a convenient digital display to ensure you have the correct channel selected.
A Mini V2 5V/12V 2A BEC is also supplied and stability and flight control is handled by the latest Naze32(B) Rev6 Flight Controller that requires no soldering to the PDB.

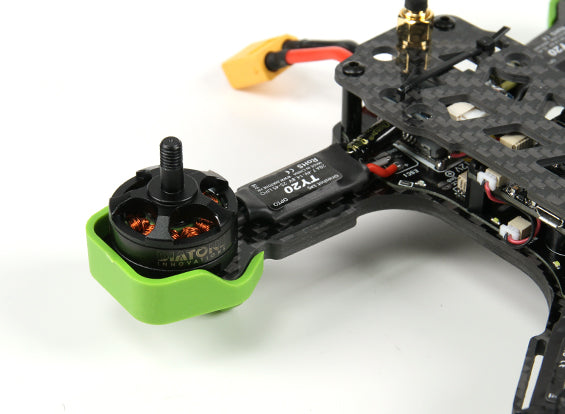

Kitted out with four Oneshot 125 TY20 20A Opto ESC's and paired with four 2204-2300KV motors, you know that with a Tyrant you are going to get one very fast machine.
Features:
• High battery placement for more dynamic response
• Tough 4mm thick carbon fiber frame
• Naze32(B) Rev6 Flight Controller
• Integrated PDB
• Race ready VTX
• Adjustable 600TVL FPV camera
• Perfect ESC and motor combination
• Motor guards
• Built-in alarm function
• Power voltage detection function
Specs:
Wheelbase: 180mm
Dimension: 184 x 143 x 60mm
Weight: 320g
Flight Controller: Naze32 REV6 6DF(B ) MPU6500
ESC: 20A 2~4S OneShot hi-speed
Camera: 600TVL Micro Camera (center horizontal resolution)
VTX: 200mW 40CH 5.8ghz Video Transmitter
Motors: BX2204-2300KV Brushless Motor (CW/CCW)
Propeller: 4 inch (4025) (CW/CCW)
PDB: Built-in 5V&12V 2A BEC (Supply power for more equipment)
Required:
1 x 3~4S (11.1~14.8V) 1000~1300mAh LiPoly Battery
5~6 Channel Radio Controller and Receiver
Includes:
Tyrant 180 Quadcopter
4 x 4025 Propellers (2xCW, 2xCCW)
4 x Spare 4045 Propellers (2xCW, 2xCCW)
4 x Propeller Adapters (2xCW, 2xCCW)
1 x Spare camera mount
1 x Set of Cables
10 x M3*8 Aluminium alloy Round Head Hex Socket Screw Pack
10 x M3*10 Aluminium alloy Round Head Hex Socket Screw Pack
1 x Hex driver
2 x Battery Straps
1 x Sticker set
1 x Manual
