FatShark Attitude V2 FPV Pack Headset Trinity Head Tracker
2021-09-09
Categorias:
Modelo: Trinity - HPK253000043-0

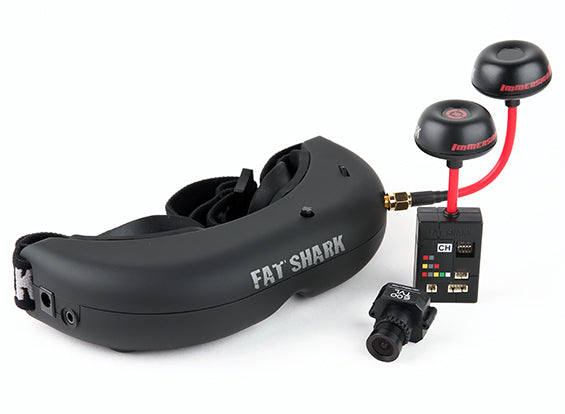

Fatshark Attitude V2 Fpv Paquete Headset Trinity Head Tracker
 |
 |
 |
 |
 |
 |
..||..
Attitude V2, already the best all round FPV headset in the Fat Shark lineup, has been supercharged with the addition of the revolutionary 3-axis Trinity head tracker. The 16bit, 9DFO 3-axis head tracker is nothing short of perfection that binds camera motion to head motion so accurately and smoothly that it creates the most convincing immersive FPV experience available. The 35 degree FOV display strikes a perfect balance between large screen immersion and compact pixel density clarity. The Attitude V2 sports the same polarized backlight technology used in the gorgeous Dominator display for vibrant colors and has adjustable IPD for dialing in the optic sweet spot. The Attitude V2 utilizes NexwaveRF technology with high pass filtering to make it impervious to 433Mhz and 2.4Ghz UHF radio interference. The quality extends to the exterior with its sleek ergonomics, rubberized texture shell, tactile motion IPD sliders and secured rubber eye cups, the Attitude V2 headset looks and feels great from the inside out.
To shorten your journey to FPV Nirvana, the AttitudeV2 bundle includes the high performance 600TVL FPV tuned CMOS camera for RTF out of the box (pan/tilt/roll mount not included).
Features:
• Attitude V2 VGA headset with integrated 5.8GHz receiver and head tracker
• Zipper carry case, lens cleaning cloth, Fat Shark stickers
• NTSC/PAL selectable CMOS camera with 2.8mm wide angle (100 degree FOV) lens
• 7ch 5.8GHz FCC compliant transmitter
• Filtered balance lead TX power supply
• AV cable (for connected to external AV devices viewing/recording)
• 2 x 5.8GHz CP SpiroNet antennas
• Manual
Specifications:
FOV (field of view): 35° diagonal (Image size: 1.3m @ 2m)
Interpupillary (IPD) distance: 59 – 69 mm (adjustable)
Optional diopter lens inserts (Not included): -2, -4, -6 dpt
Audio: Stereo (Earphone not included)
Power supply: 7-13 V (2S/3S supply)
Power consumption (@7.4V nominal): 300mA wireless/ 150mA direct mode (RX off)
Weight: 150g
Resolution: 922,000 pixels binocular display (640 X 480 VGA)
Full color LCD LED backlit Kopin CyberDisplay
NTCS/PAL auto selecting
Trinity 9DOF 3-axis head tracker
Battery: 7.4V 1000mAh
Operating Frequencies: 5740MHz, 5760Mhz, 5780MHz, 5800Mhz, 5820MHz, 5840Mhz, 5860Mhz
*Note: Fat Shark headsets use NexWave brand RF modules.
Compatibility is only guaranteed with Fat Shark and
ImmersionRC transmitters.
Interface
3.5mm AV in/out port
Power in port
3.5mm stereo earphone port
PS/2 DIN head tracker data port
Camera Specifications:
Power supply: 3.5-5V (powered off TX)
Power consumption: 60mA @5V
Imager:
1/3” CMOS
FPV tuned light handling
NTSC or PAL selectable (Jumper on = PAL)
Lens: 2.8mm IR coated
100°diagonal FOV (ideal for fixed camera)
Size:
Square: 21 X 21 X 12mm
Lens extrude: 15mm X 14mm diameter
Weight: 15g
Transmitter Specification (25mW 5G8 V3):
Power supply: 7 - 17V (2S-4S supply)
Power consumption: less than 100mA @12V (+camera supply)
Power out (camera): 250mA, 5V
Frequency: 5740MHz, 5760Mhz, 5780MHz, 5800Mhz, 5820MHz, 5840Mhz, 5860Mhz
Size: 40 X 26 X 14mm
Weight: 22g (with antenna)
Combined onboard FPV components (TX, camera, filtered power adapter):
Power supply: 6 - 17V (2S-4S supply)
Power consumption: 390mA @7.4V
Total weight: 42g (with antenna)
Powered via battery balance lead
