Quanum Venture FPV Quadcoptero 430mm Solo Armazon
2021-09-09
Categorias:
Modelo: Quanum - HPK9171000502-0
Quanum Venture Fpv Quadcoptero 430mm Solo Armazon
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
..||..

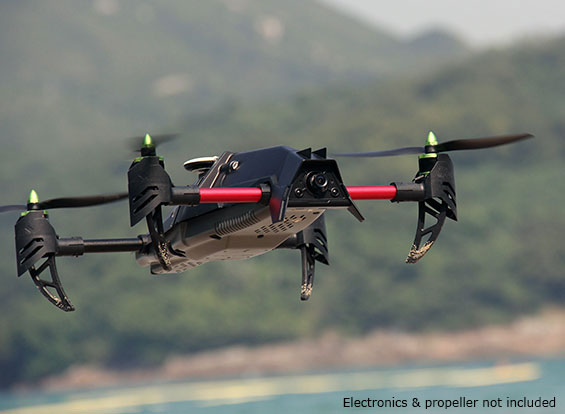

The Quanum Venture FPV Quadcopter Frame. It's time to Explore More.
The Venture FPV Quad started life as a H-quad giving the camera a forward unobstructed view of the sky ahead, as well as allowing for optimal equipment separation to minimise video transmission interfererence & perfect flight controller positioning. With a layout decided, a sleek purpose built molded frame was forged with an aluminum main spar and unibody strengthening. All the best provisions were taken into consideration, making the Venture the best FPV cross platform frame available with options and provisions beyond any other Quad in its class.
The Venture frame has a center spar to which most components attach. The ESC mount/power distribution board with filtered FPV power lines also handles the centerline battery mounting. The Multi-mount FC position and Power module support can handle your choice of FC and remote UBEC/USB modules. The cross arms allow for in-tube wiring and the motor mounts not only look good, but protect the motor and have replaceable/optional landing skid options. The front arm mount houses a protected center camera mounting cube that can handle 30mm and smaller FPV cameras with vibration isolation pads. The lower molded unibody shell attaches to the arms and spar and has provisions for universal gimbal mounting and tall skids as an option. The Lower shell also has a rigid top cross roll bar/GPS mount and a mounting cube for the FPV transmitter. The upper shell is vacuum formed poly carbonate for a balance in weight and strength and lends well to customizing. Access ports have been made for all types of gear so maintenance is a snap.
The Venture is a refined evolution of multi-rotor DNA, and closes the gap with cross use without compromise.
Note: This is a frame only kit. No electronics.
Features:
• Unibody and spar construction
• Quad esc mounting/PDB with filter FPV power
• Protected stylish Motor Mounts
• Universal gimbal mounting and tall skid options
• Provisions for all types of equipment pre-molded
• Styled looks with true functionality
Specs:
Wheelbase: 430mm
Weight: 440g
Max prop: 10inch
FC mounting: Universal plate and 45mm
Power Distribution: Mounting for 20~30A esc
FPV camera mount: 30mm and smaller
FPV TX mount: 31x42mm
Gimbal Mounting: 45mm square and 40mm centerline
Required Parts:
2212 920kv MultiStar motors x 4
20A Afro ESC x 4
8 inch props
2200~3300 3s battery
5ch radio
FPV gear
