Serpent S411 Sport 1:10 Kit
2021-09-08
Categorias:
Modelo: Jandra Tangzong - HPK553000001-0

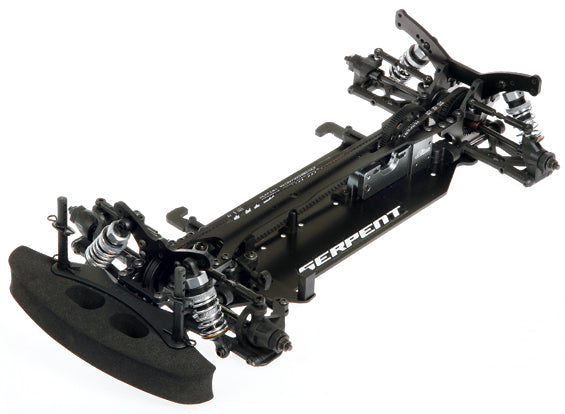

Serpent S411 Sport 1:10 Kit
 |
 |
 |
 |
 |
 |
 |
..||..
™ is now carrying another famous brand - Serpent! Both On and Off road competition chassis kits are now available!
This is S411 Sport version kit, sharing same design with the original S411, but using different materials for the chassis. Serpent enters the competitive electric touring car market with the S411, which like all our previous cars, has been designed to win straight out of the box. Featuring an ultra low centre of gravity, optimized weight distribution, high performance geometry and top quality materials throughout, the S411 should see you in the winner’s circle in no time. In fact everything associated with this car is of the highest quality, from the packaging and supplied manuals, right through to the product and race support.
Features:
• Chassis: Super narrow, symmetrical, durable black glass-fiber chassis plate with optimised flex design, countersunk holes, central section holes all perfectly in center, pockets for gear diff, spool and spur.
• Top deck: Durable black glass-fiber top deck with optimised flex design.
• Battery-mount brackets and LiPo holders. Easy to use nylon batter tape holder, which allow the battery tape to run over instead of under the chassis. The holders can be reversed for other battery position. The LiPo holders will securely keep the LiPo in place, also at hard impact.
• Shock tower front: Black glass fiber shock tower with 3 upper shock mounting holes to choose from. Holes for an extra central body post are already made as well.
• Front bracket: Machined aluminum front brackets, with belt tension adjusting through ex-centers. Suspension brackets in durable nylon.
• Front suspension: Durable lower front wishbones connected to the inner brackets with strong steel pivot pins. An anti-roll bar system can be mounted as option.
• C-hub / steering block: The c-hub type front system creates a super precise steering feeling with great feedback, and strong wheel guidance without chatter.
• Shock tower rear: Black glass fiber shock tower with 4 upper shock mounting holes to choose from. The rear body posts are mounted to the top of the rear shock tower.
• Rear bracket: Machined aluminum rear brackets, with belt tension adjusting through ex-centers. Suspension brackets in durable nylon with 3.0 RR FR and split type 0.0 blocks RR FR
• Rear suspension: Durable lower rear wishbones connected to the inner brackets with strong steel pivot pins. An anti-roll bar system can be mounted as option.
• Rear upright: Strong rear uprights with 2 upper positions, for perfect guidance of the rear wheels.
• Motor mount: Machined aluminium motor mount / middle shaft support.
• Gear-diff: Very compact ball raced gear differential in the rear, with steel gears and axles for durability.
• Spool: Front nylon lightweight spool with screw mounted front gear pulley.
• Transmission / belts / pulleys: Smooth low friction fine pitch belts combined with optimised nylon pulleys
• Shock absorbers: Latest type RCM competition shock absorbers with membranes and checked color coded race springs.
• Optional upgrades: The Serpent 411 Sport is based on the high end race version of the 411. All parts from the 411 race-version and also all optional parts, also fit the 411 Sport. This allows you to upgrade your 411 Sport to a higher level race spec step by step, with the parts you select. The 411 Sport parts manual shows those parts, and you can find them in the optionals section of the 411 Sport also.
Specs:
Chassis: 2.5mm CNC machined glass fiber
Suspension: Front C-Hub suspension system
Rear axle: Rear gear-differential
Front axle: Front nylon spool
Drive system: 4wd through 2 kevlar reinforced timing belts
Shock absorbers: RCM shock absorbers
Wheel base: 254mm +/- 4mm
Track-width front: 190mm /- 6mm
Track-width rear: 190mm /- 6mm
Required:
2-Channel radio system
2S 7.4V LiPoly battery
Battery charger
Electronic speed control
Electric motor
Pinion gear
1/10 scale body
Paint for body
Wheels
Tires
Glue for wheels and tires
Steering servo for 1/10 scale
Building Tools
Other suggested items: Reamer/hole punch, CA glue, thread-locking glue, silicone fluid
