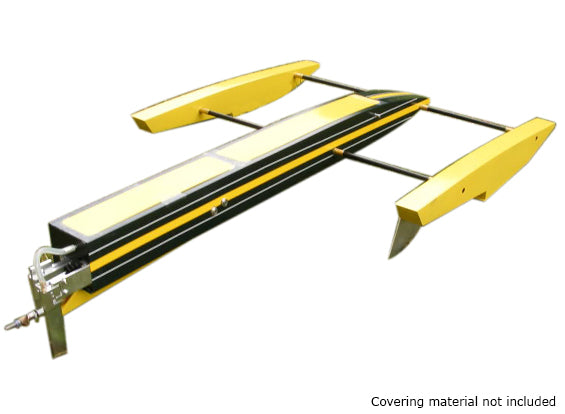

Zippkits Jae 21fe Girador Electrico De Velocidad Outrigger Kit
 |
 |
 |
..||..
The JAE series was designed and developed as a result of a joint venture between IMPBA Hall of Fame member Rod Geraghty, David Hall, Ron Zaker and Martin Truex Jnr. The main difference between this hull and the others on the market is the use of sharp edges on the bottom of the sponsons and tub, as opposed to curved surfaces. This helps break the surface tension of the water and makes for a faster boat.
The JAE 21 nitro version holds many speed records, and is currently the fastest boat in the world on the 1/4 mile oval course (16secs for 2 laps). This electric version has the same pedigree and with the right choice of motor and prop set up it will follow in the footsteps of the nitro version.

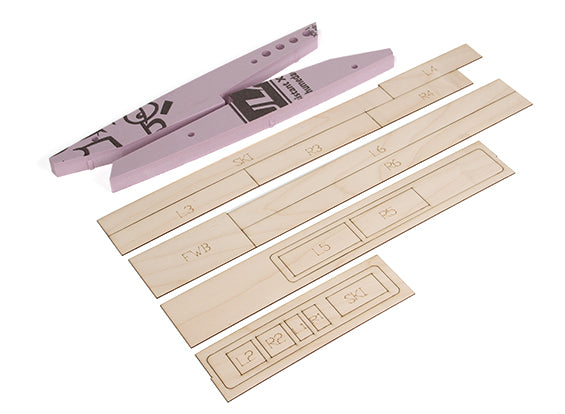

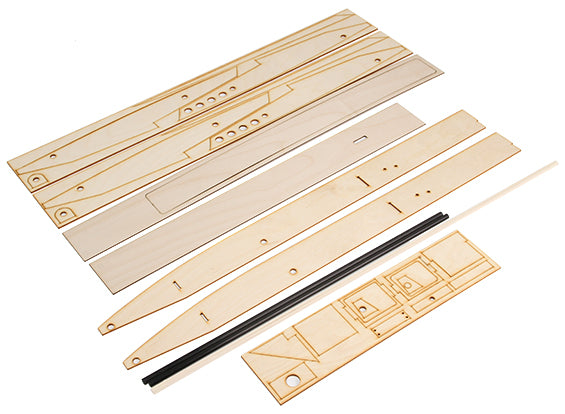

The JAE 21FE is a quick build kit and features a level of pre-fabrication never seen before in a boat kit. All of the hard work has been done for you, it requires only simple assembly and finishing. Included is a comprehensive step by step assembly manual with lots of photographic images.
A full running hardware kit is available as an optional extra which includes many machined parts, flexi shaft, coupling, nuts and bolts, propeller and much much more, see "Related Items".
You will need the following basic tools and supplies to construct the Mini Sprint:
• Modelling knife
• Spring clamps, G clamps
• Various drill bits
• Flat file
• Round file
• Sanding block with 80 and 150 grit paper
• Masking tape
• Primer and paint
• Wood filler
• Epoxy finishing resin
• 5min and 30min epoxy
• Medium CA with accelerator
Specs:
Length: 790mm
Width: 575mm
Height: 75mm (excluding rudder and turn fin)
Addional parts required to complete the JAE 21FE:
36mm brushless inrunner or outrunner motor
Electronic speed controller to suit your choice of motor
2 channel transmitter and receiver
Standard size MG rudder servo
4S 4000~5000mah lipoly battery
Receiver battery
JAE 21FE running hardware kit (see "Related Items")
Note: Zippkits JAE 21FE Fast Electric Outrigger Ultimate Running Hardware Combo Set is listed in the Accessories tab below. Click here for Hardware Combo Set
